Specification of Colour Coated Galvalume Roofing Sheet
| Material | PPGL (Pre-Painted Galvalume Steel) |
| Thickness | 0.60 mm |
| Length (mm) | 900-1000 mm |
| AZ Coating (GSM) | AZ150 (aluminum-zinc alloy coating mass of 150 g/m²) AZ200 (aluminum-zinc alloy coating mass of 200 g/m²) |
| Reference Standard | IS 15961:2012 |
| Yield Strengths | 550 MPa |
| Tensile Strength | 340-700 MPa |
| Operating Temperature | Up to approximately 315°C (600°F) for continuous exposure |
| Profile Types | Coil and Corrugated |
| Surface Finish | Regular |

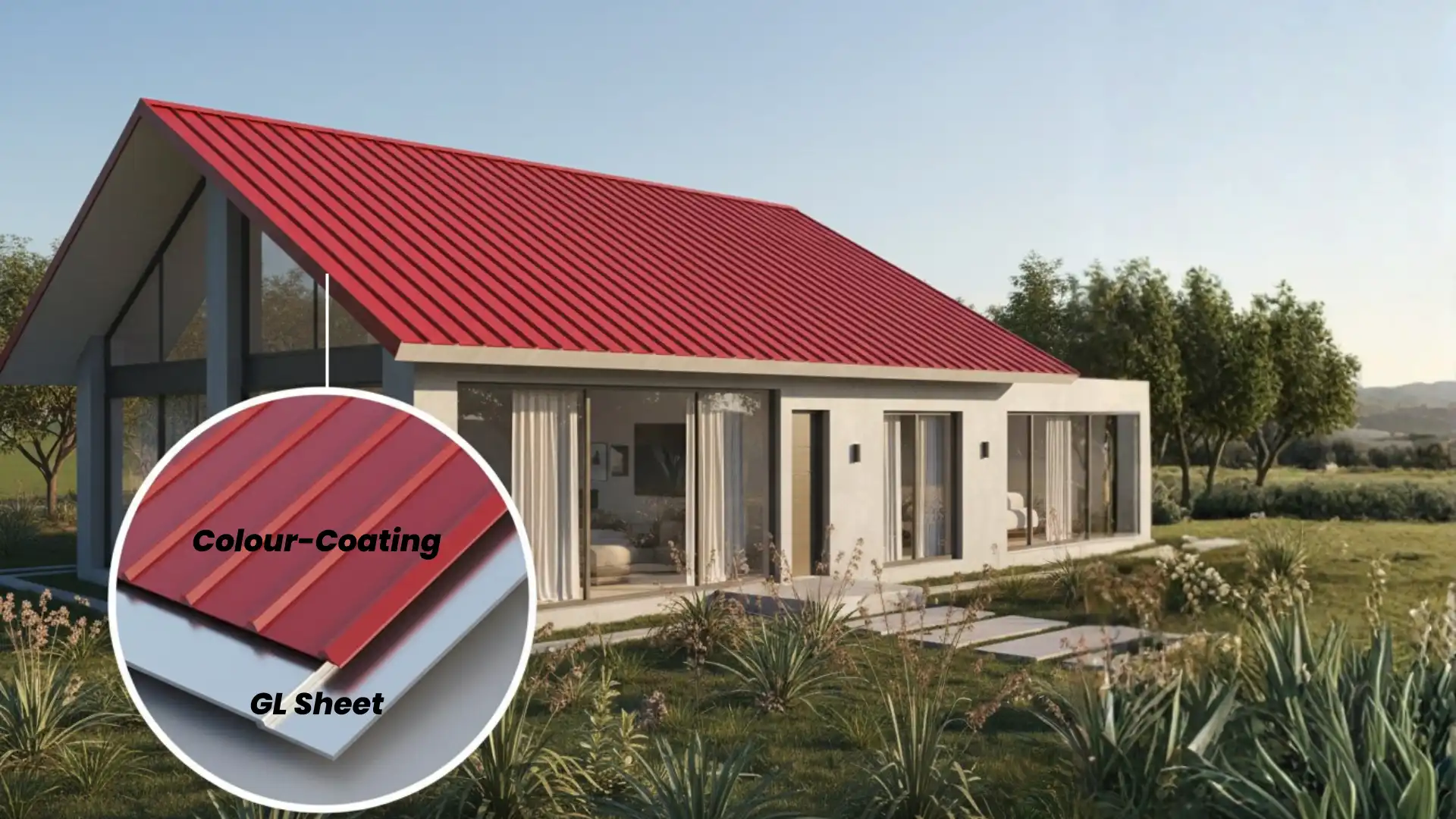

Rhino Roofs manufactures colour coated galvalume sheets using high-quality PPGL (Pre-Painted Galvalume Steel) with a high-strength 550 MPa steel substrate for superior structural performance. Available in 0.60 mm thickness with AZ150 and AZ200 aluminium-zinc alloy coatings, these galvalume colour coated sheets offer excellent corrosion resistance and long-term durability. Manufactured in accordance with IS 15961:2012, they feature a tensile strength of 340–700 MPa, withstand continuous operating temperatures of up to 315°C (600°F), and are available in coil and corrugated profiles with a regular surface finish. These specifications make every colour coated galvalume sheet a reliable roofing solution for residential, commercial, industrial, and agricultural applications.
Available Colours Types of Our Galvalume Colour Coated Sheets
Red Colour
Green Colour
Blue Colour
Available Colour Coated Galvalume Sheet Profiles
Colour Galvalume Coil
Colour coated galvalume coil delivers smooth finish, easy fabrication and lasting colour protection for industrial and commercial applications.
Colour Coated Corrugated Galvalume Sheet
Colour corrugated gl sheets are designed with a durable painted surface on galvalume sheet in multiple colours to complement modern roofing styles.
Advantages of Colour Coated GL Sheets
Colour coated galvalume roofing sheets offer significant advantages over conventional GI sheets due to their advanced aluminium-zinc alloy coating and premium paint finish.
Key Features & Benefits
- Manufactured from premium PPGL (Pre-Painted Galvalume Steel) for enhanced strength and durability
- Premium colour coating for long-lasting finish and colour retention
- High UV resistance to minimise fading over time
- Reflects heat efficiently for improved roofing performance
- Advanced AZ150/AZ200 aluminium-zinc coating provides superior corrosion resistance compared to conventional GI sheets
- High-strength 550 MPa steel ensures excellent structural performance and long service life
- Excellent resistance to moisture, rain, and harsh weather conditions for reliable year-round performance
- Requires minimal maintenance, reducing long-term ownership costs
Installation Benefits of Colour Coated Galvalume Sheet
Colour coated galvalume roofing sheets are designed for quick and efficient installation, making them a practical choice for projects of all sizes. Their lightweight property simplify handling on-site, helping reduce installation time while ensuring a secure and durable roofing system. Whether used for new construction or roof replacement, these GL sheets offer a cost-effective solution without compromising on performance.
- Lightweight design reduces the load on the building structure.
- Easy to handle, transport, and position during installation.
- Helps reduce project completion time and overall labour requirements.
Applications of Colour Coated Galvalume Roofing Sheets
Every project has unique roofing requirements, but all demand durability, protection, and long-term value. Coloured Roofing Sheets are designed to meet these expectations while adding a clean and modern finish to every structure.
Industrial Roofing
Colour coated galvalume roofing sheets provide strong protection against corrosion, weathering and heat, making these galvalume sheet ideal for factories, manufacturing units, plants, and industrial structures.
Commercial Buildings
Colour galvalume sheets provide a premium appearance with long-lasting colour retention and low maintenance requirements, making them suitable for offices, shopping centres, educational institutions and commercial complexes.
Residential Building
Colour coated galvalume sheet is available in a range of attractive colours that blend seamlessly with independent homes, villas and home extensions, these GL sheets provide protection while enhancing the overall look of the property.
Agricultural Shed
These galvalume colour coated sheets are suitable for poultry farms, dairy units, barns, and storage sheds, these sheets withstand moisture, sunlight, and changing weather conditions with minimal maintenance.
High Rainfall Areas
With excellent water resistance, corrosion protection and corrugated profile design (for better water drainage), colour coated gl sheets are suitable for regions with heavy rainfall, ensuring durable roofing performance during wet conditions.
Mountain & Hilly Areas
These colour coated galvalume roofing sheets perform well in challenging terrains by offering resistance against cold weather, moisture, and changing climatic conditions in mountain and hilly regions.
Why Choose Rhino Roofs Colour Coated Galvalume Sheets?
For more than 50 years (from 1972), Rhino Roofs has been manufacturing roofing sheets that combine quality, innovation, and dependable performance. Every colour galvalume sheet is produced using premium raw materials, advanced coating technology, and rigorous quality control to ensure consistent performance across every project.
Quality Assurance
- We do quality tests like corrosion resistance test, surface quality inspection, bend performance test and adhesion test.
- Roofing sheet manufacturering experience from 1972
- We follow the quality control standards (IS 15961:2012)
- Colour GI sheets are vailable in multiple thicknesses, profiles (corrugated and coil), AZ coatings and lengths
- We provide smooth and metallic finish in every galvalume colour sheet.

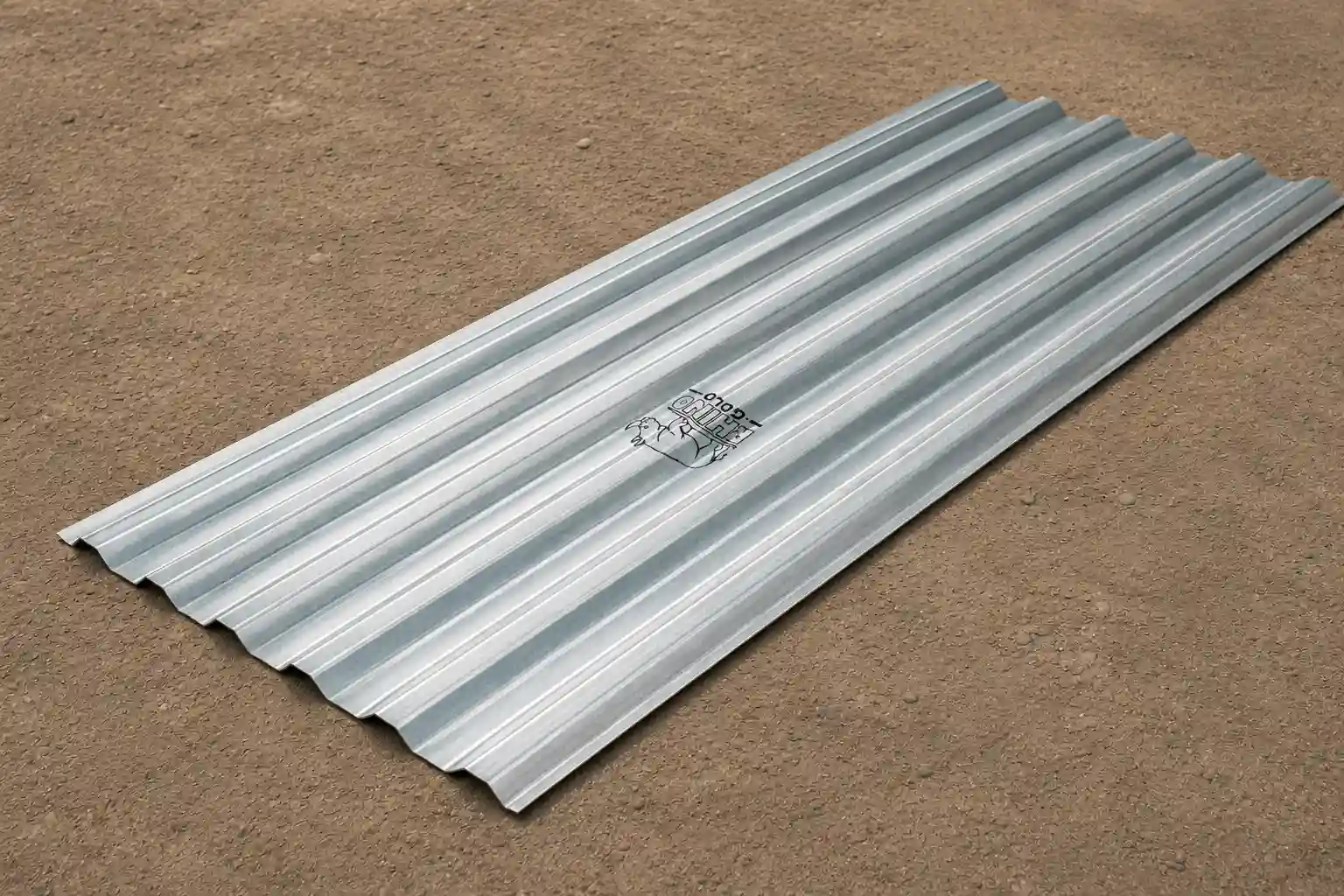

Other Available Galvalume Roofing Sheets
Alu-Zinc galvalum roofing Sheet is manufactured for applications where long-term durability is essential. The advanced aluminium-zinc alloy coating offers excellent strength and durability. It is also low maintenance requirements that make them a practical roofing solution for demanding environments.
FAQs
Yes. Colour Coated Galvalume Sheets can be used for new construction as well as roof replacement and renovation projects, provided the supporting structure is suitable for installation.
Yes. Rhino Roofs offers Colour Coated Galvalume Sheets in a variety of colours and profiles to suit different architectural styles and project requirements.
No. Routine cleaning to remove dirt, leaves, and debris is generally sufficient to maintain the appearance and performance of Colour Coated Galvalume Sheets.
These sheets are widely used across industries such as manufacturing, warehousing, infrastructure, commercial construction, agriculture, retail, and residential development due to their durability and aesthetic appeal.
Yes. Colour coated galvalume roofing sheets are suitable for coastal areas because their aluminium-zinc coating provides excellent resistance to corrosion, moisture, and salt-laden air. For the best performance in highly corrosive environments, selecting the appropriate coating grade and ensuring proper installation is recommended.
